3.6 - Chart Indicators

StocksToTrade 2.0 offers a wide range of Indicators to help identifying patters on charts.

You may add an indicator by clicking on the Indicator Button:

This will provide you with a list of available indicators. For a complete list, please refer to Appendix H

Customizing indicators

You can customize the existing indicators (change the period and color). The following list shows the relation between the chosen indicator and its options.

Indicator

Parameter

Range

Moving price average

Period

2-99

Exponential moving average

Period

2-99

RSI

Period

4

MACD

Slow period

2-50

Fast period

2-50

EMA period

2-50

Momentum

Period

2-50

Bollinger bands

Period

2-50

Divergence

1-5

Stochastic oscillator

Period

2-50

Slow stochastic oscillator

Period

2-50

VWAP

Period

2-50

Exponential moving average

Period

2-50

PPO

Slow period

2-50

Fast period

2-50

EMA period

2-50

Pivot Points

N/A

N/A

In order to perform customization on active indicators, click on the Indicator Button (), then select Custom from the drop down list.

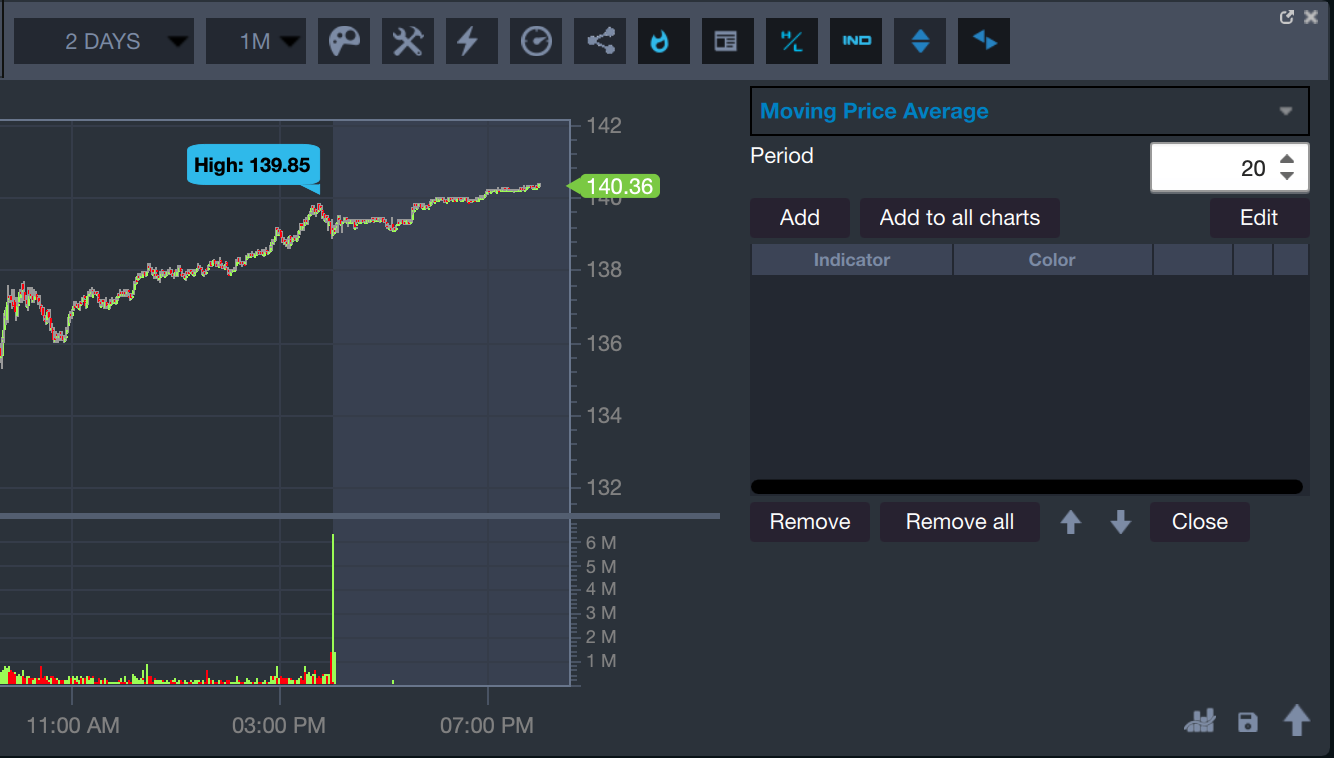

This step will activate the Indicator Customization Panel and will appear to the right of the active chart:

Set the necessary parameters according to your needs by modifying the values and colors on the Indicator Customization Panel

The panel also allows you to remove a single or all indicators from the chart by clicking respectively on Remove and Remove All.

You may hide the Indicator Customization Panel by clicking on Close.
